TOK SERIES

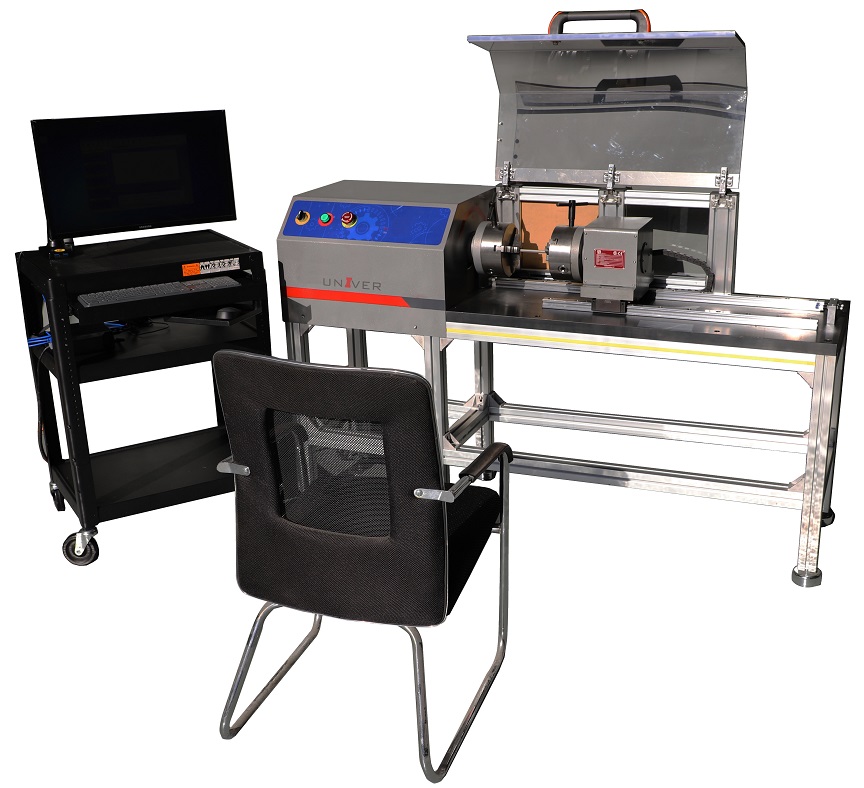

Torsion Testing Machine
UNIVER TOK Series Torsion Testing Machine, or Twist Testing Machine are used to determine the torsional properties of various components, it offers a full range of torsion testing machines in capacities from 100 to 3000 Nm which can conveniently determine the real time torque, shear modulus and torsional stress load of a specimen, which makes customers possible to see how specimen behaves under conditions of continuous or intermittent torque loading in both directions. These frames employ very dependable servo-controlled systems and a strain gage torque sensor is mounted on a moveable unit, which can position on the rails to accommodate specimens of varying lengths.
Features:
- Loading and weighing capabilities in both directions of rotation. This feature makes it possible to conveniently determine not only the ultimate torque load of a specimen, but how that specimen behaves under conditions of continuous or intermittent torque loading in both directions
- Highly integrated servo-controlled system which easy and low maintenance.
- High speed data acquisition system, ensure the real reflection of torsional performance
- UNIVER TORQUE allows complete machine control along with capture and analysis of the resultant torsional test data, showing the material behavior throughout the test, it features user configurable testing methods, makes the test more flexible.
- Stepless twisting velocity due to servo motor control instead of frequency converter with fixed twisting velocities
- Custom made chucks are available for specimen of different shape and material
- Custom made twisting velocity is available upon request
Typical Applications

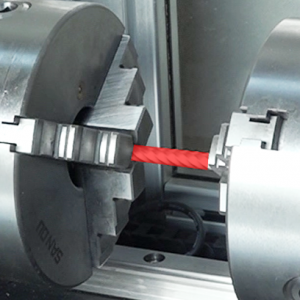

Torsion Test
Torsion Test
