TOK-10

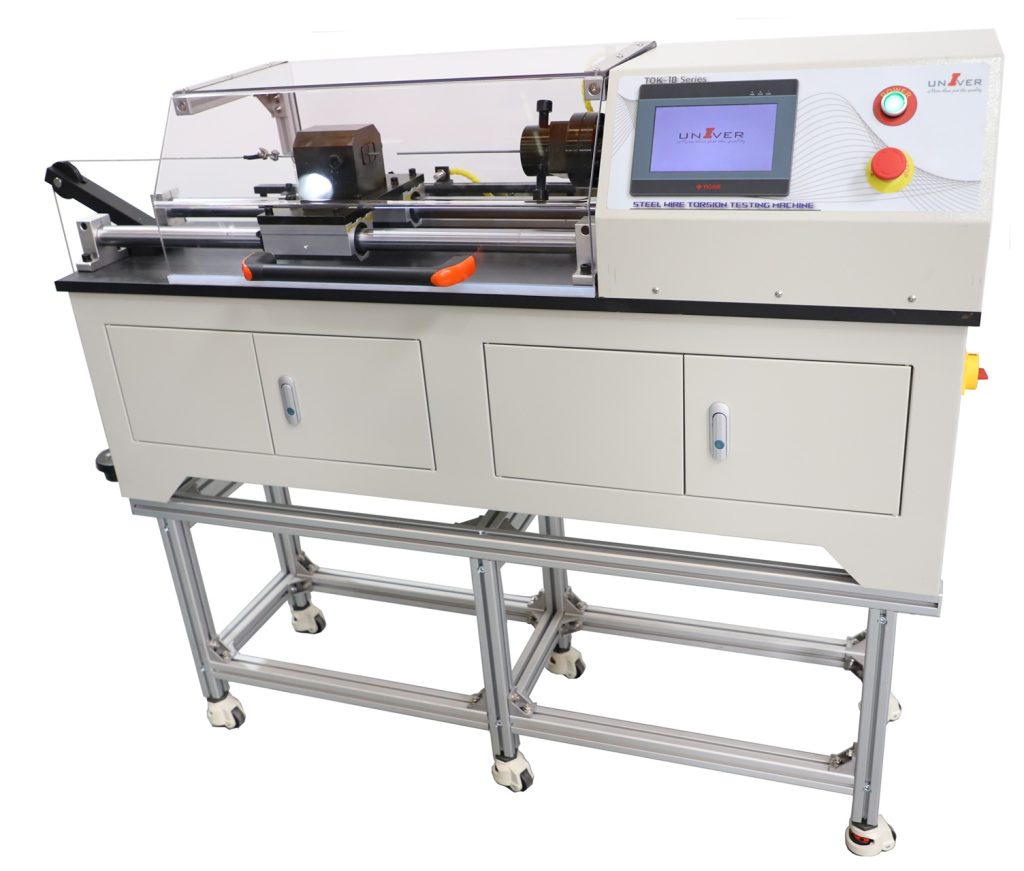

Steel Wire Torsion Testing Machine
UNIVER TOK-10 Series Steel Wire Torsion Testing Machine is specially designed to determine the ability of metallic to undergo plastic deformation during simple torsion (Twisting) in one direction.
The standard machine is capable of testing wire rod as large as 10mm diameter (above upon request) and it is offered with an axial preload assembly that allows for a constant tensile load to be applied to the specimen. This set-up prevents the specimen from overlaying on itself during twisting. These torsion testing systems also include a standard interlocked test enclosure for extra safety.
ISO 7800: Metallic materials — Wire — Simple torsion test
ASTM A938: Standard Test Method for Torsion Testing of Wire
API 9A: Specification for Wire Rope
Features:
- Servo-controlled machine means high precision, low noisy and less maintenance
- Twisiting direction, twisting speed as well as cycles are user configurable
- Dual linear slide design provides high-rotational stiffness and low-axial friction
- Adjustable crosshead locking system allows crosshead to be free-floating or fixed during testing
- Interlocked test space enclosure enhances operator safety
- Replaceable clamping blocks to accommodate steel wire in different diameters.
- Digital control electronics allow for accurate and repeatable test results and fast control response
- Preload assembly applies a constant tensile load during test
Typical Applications

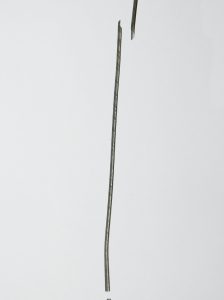

Steel Wire Torsion Test
Steel Wire Torsion Test
