KF SERIES
Hydraulic Compresion Testing Machines

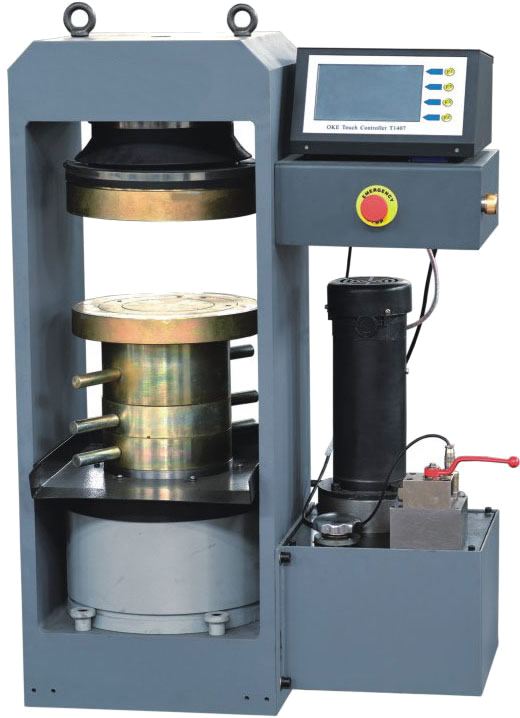

UNIVER KC Series Hydraulic Compression Testing Machines, available in 2000 kN and 3000 kN capacities, are designed to provide reliable and cost-effective compressive strength testing for concrete cubes and cylinders.
The load frame features a rigid welded steel construction with a self-aligning upper platen and a marked lower platen for accurate specimen centering. KC Series machines accommodate concrete cylinders up to 320 mm in length and 160 mm in diameter, as well as square cubes of 100 mm, 150 mm, and 200 mm.
Features:
- Robust Load Frame
Heavy-duty welded steel construction ensures strength, rigidity, and long-term durability. - Quiet Operation
Smooth hydraulic system design minimizes noise for a more comfortable laboratory environment. - Standard Distance Pieces
Supplied as standard for convenient adjustment of test space to accommodate various specimen sizes. - Single-Phase Power Supply
Simple electrical configuration for easy installation and operation. - Compact Design
Space-efficient layout requires minimal laboratory footprint. - Comprehensive Safety Protection
Integrated overload and over-travel protection systems safeguard both the operator and the machine.
Typical Applications
Compressive Strength (Concrete)
Compressive Strength (Concrete)
EN 12390-3: Testing hardened concrete – part 3: compressive strength of test specimens
EN 12390-4: Testing hardened concrete — Part 4: Compressive strength — Specification for testing machines
UNE-EN 772-1: Methods of test for masonry units – Part 1: Determination of compressive strength
EN 772-1 ：Compressive Strength of Clay Masonry Units
EN 772-1： Compressive Strength of Dense and Light Concrete Masonry Units
EN 12504-1 ：Compressive Strength of Cored Concrete Specimens
AASHTO T22：Standard Method of Test for Compressive Strength of Cylindrical Concrete Specimens
ASTM C39: Standard Test Method for Compressive Strength of Cylindrical Concrete Specimens
